  • Adjustment of the manual call point after alarm triggering
  • Indicator LED for alarm or for inspection evaluation
  • Second contact with connections for panel control
  • Variants for indoor and outdoor use

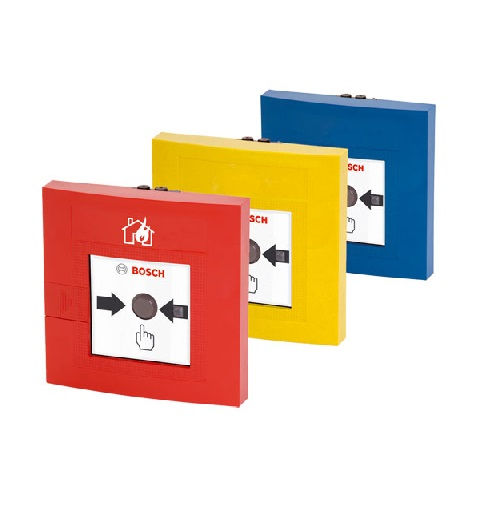

BOSCH - FMC-120-DKM MANUAL CALL POINTS

Ürün Kodu: FMC-120-DKM
  • Operating voltage: 24 V DC (16.2 V DC . . . 30 V DC)
    Current consumption: Specified by the respective security system
    Dimensions (W x H x D): 135 x 135 x 37 mm / 5.31 x 5.31 x 1.4 in.
    Housing material: Plastic (ASA)
    Colors: Red, RAL 3001 Blue, RAL 5005 Yellow, RAL 1003
    Weight: Approx. 224 g
    Protection class as per EN 60529 ;
    Form G (indoor area)
    : IP 52
    Form H (outdoor area): IP 54
    Norm ;
    FMC-120-DKM-G-R, FMC‑120‑DKM‑H‑R
    : EN 54-11
    FMC-120-DKM-G-Y, FMC‑120‑EST‑G‑B: EN 12094-3
    Permissible operating temperature
    Form G (indoor area): -10 °C . . . +55 °C / 14 °F … 131 °F
    Form H (outdoor area): -25 °C . . . +70 °C / -13 °F … 158 °F
